What is the range of the Diversity Fin?
The range of any wireless system depends on a number of factors, of which antenna type is only one. Antenna placement, noise floor, and interfering signals are by far the most significant factors in determining range. Very few live sound applications exceed antenna to mic distances of 300’. The Diversity Fin will provide the same or slightly better range than paddle/shark fin antennas, under the same RF conditions - which is more than enough for most production scenarios. Those who need longer range should consider the CP Beam.
How many DFINs are required per receiver?
Only one Diversity Fin is required per diversity receiver. The Diversity Fin is a polarization diversity antenna system with two antenna outputs. Simply connect output one of the Diversity Fin’s outputs to channel “A,” and the other to channel “B” on your wireless microphone receiver or antenna distributor. Consider watching the video for a better mental picture. A single Diversity Fin can accommodate four or more receivers using a single or cascaded DISTRO4 antenna distributor.
Does the DFIN really work better than two paddles?
Yes. The Diversity Fin provides superior signal dropout protection than a pair of matched paddle/shark fin antennas. The Diversity Fin eliminates multi-path interference and reduces switching noise using coincident placement of orthogonal elements. A technical description of the Diversity Fin’s benefits is found in our white paper.
What about unity gain?
The Diversity Fin is a hybrid antenna with two elements: a dipole antenna with low gain, and an LPDA with medium-high gain. Experienced professionals have been told again and again that both antennas on a diversity receiver should be identical. We have discovered that unity antenna gain in a diversity system is a myth. We have debunked this myth again and again, quantitatively and in the real-world, since we released the Diversity Fin more than five years ago. We substantiate our claims in this white paper, in the video above, and through the thousands of professionals who are using a Diversity Fin today.
What is the frequency range? Are there other frequency ranges available?
The Diversity Fin is designed to operate between 470-698 MHz.
Does the Diversity Fin work with in-ear monitors?
The Diversity Fin was designed for receive applications in a diversity receiver system. Although it is technically possible to use one of the two antenna elements (LPDA or dipole) for a transmit application, like an in-ear monitor, none of the Diversity Fin’s benefits will carry over to a transmit scheme. In other words, it defeats the point. You’re better off purchasing a single standalone paddle or a helical antenna to use with your wireless monitor.
Is the Diversity Fin compatible with my Shure/Sennheiser/AKG/AT/Lectrosonics XYZ?
The Diversity Fin is compatible with any model of diversity receiver from any manufacturer that has detachable antennas/external antenna inputs and operates in the UHF broadcast range (470-698 MHz US, 470-790 MHz UK/EU). Diversity receivers have two antennas on the back. Still unsure? Give us a call or drop us an email. We’re happy to help.
How many Diversity Fins do I need for my wireless system?
Only one. Systems with more than one receiver should use a distribution amplifier like our DISTRO4 to distribute multiple microphone signals through a single Diversity fin. We sell turn-key packages that include everything you need, including jumper cables.
Does the Diversity Fin require DC power?
The Diversity Fin is a passive, unpowered antenna. It does not require power of any kind. All you need is coaxial cable. We discourage the use of so called “active” antennas, as we find them to create more problems than they solve. More on that here.
How many wireless microphones can I use with the Diversity Fin?
You can use nearly unlimited wireless microphones with a single Diversity Fin if you use cascaded distribution amplifiers, like our DISTRO4.

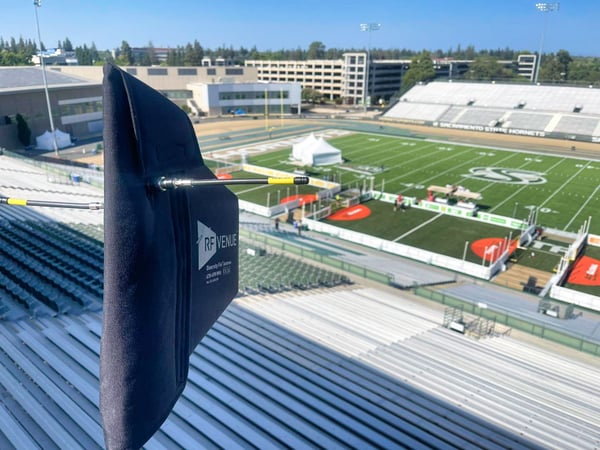

Can I use a Diversity Fin Antenna Outdoors?
Read our blog post for more information on how to Protect Antennas and Wireless Gear from Rain, Basketballs, and Other Hazards with Transparent Domes
