SKU: D-ARC, D-ARCB

Diversity Architectural Antenna™

IN STOCK

MAP: $649 USD

The new Diversity Architectural Antenna by RF Venue is a high-performance antenna system for wireless microphones that helps avoid wireless dropouts. It features a slim profile enclosure so that the Diversity Architectural Antenna can be installed in any position on a wall or ceiling, and you can paint it to match any interior so it blends in. We use a unique patent-pending dual-feed antenna design that includes both A and B diversity connections, so there is no need to install two separate antennas for your system for wireless microphones. This helps you avoid drops from your wireless microphones, and it gives the venue a more professional look.

Antenna Quick Sheet Where To Buy

Key Features & Benefits

Slim Profile Nearly invisible in any background

Two Antennas in One One Diversity Architectural Antenna replaces two traditional LPDA paddle antennas

Avoid Dropouts Eliminates the most common interference problems, thus reducing dropouts

About the Product

Target Audience and Venues

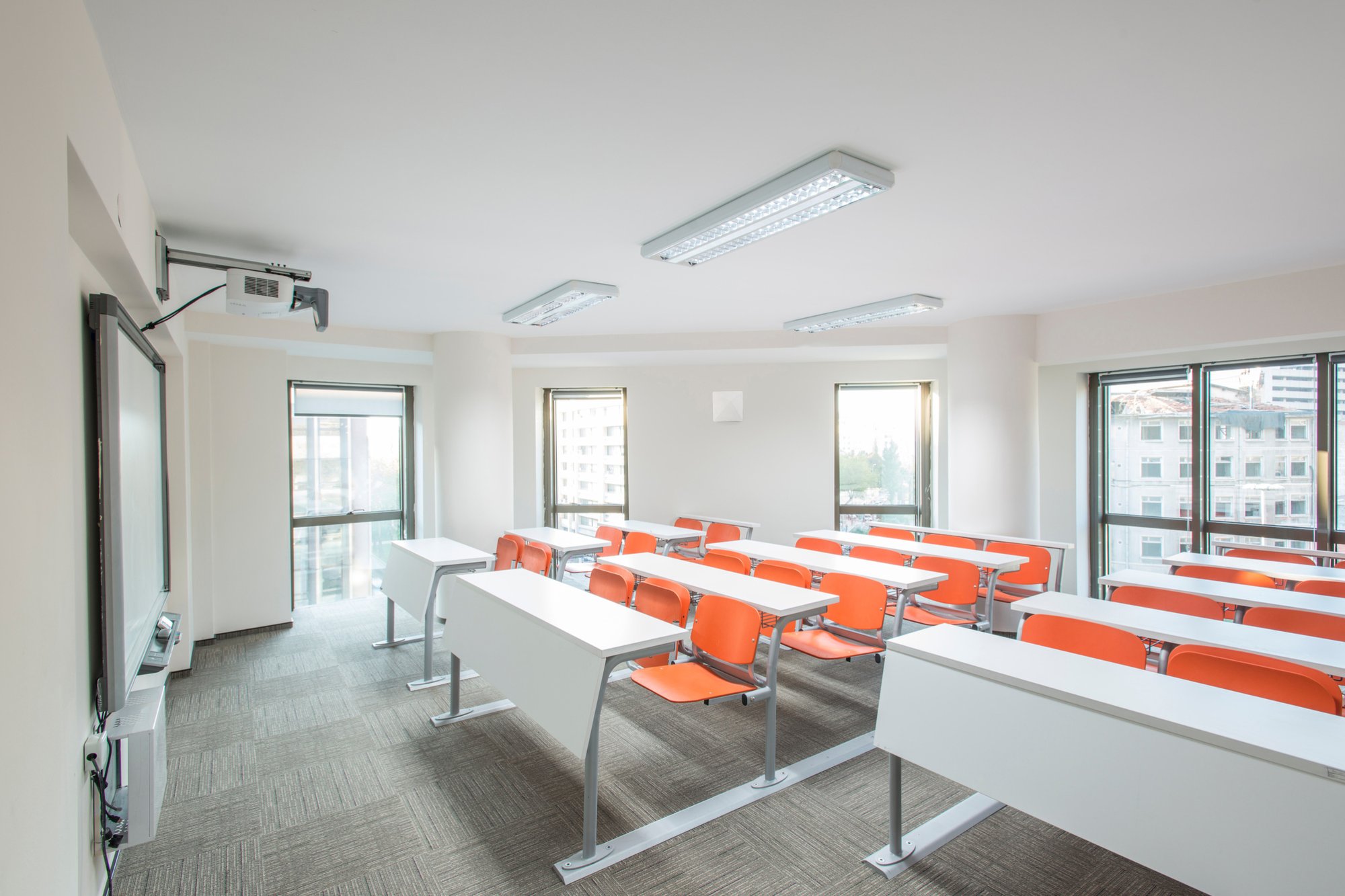

Wireless mic users in houses of worship, conference rooms, schools, auditoriums, night club, etc.
Pattern and Range

140°conical pattern with typical range to 200'
Placement Example

Put it at stage wings or front of house (FOH). Point at transmitters (or where the talent is).
Available Packs & Parts

Bundled Packs Available:

4 Channel Upgrade Packs:

SKU: D-ARCDISTRO4 - White Diversity Architectural Antenna, DISTRO4 Antenna Distribution system with (10) BNC jumpers, (4) DC jumpers, and (1) AC power cord Two White 25' RG8X BNC cables

SKU: D-ARCBDISTRO4 - Black Diversity Architectural Antenna, DISTRO4 Antenna Distribution system with (10) BNC jumpers, (4) DC jumpers, and (1) AC power cord Two black 25' RG8X BNC cables

5 Channel Upgrade Packs:

SKU: D-ARCD5 (1) DISTRO5 HDR (1) Diversity Architectural Antenna, white (2) 25' RF Venue Low Loss Antenna Cables, white (1) 10 Pack 1.5' RF Venue Low Loss BNC Interconnect Cables, (1)DC-OCTOPUS-CABLE

SKU: D-ARCBD5 (1) DISTRO5 HDR (1) Diversity Architectural Antenna, black (2) 25' RF Venue Low Loss Antenna Cables, black (1) 10 Pack 1.5' RF Venue Low Loss BNC Interconnect Cables, (1) DC-OCTOPUS-CABLE

9 Channel Upgrade Packs:

SKU D-ARCD9 (1) White Diversity Architectural Antenna, (1) DISTRO9 HDR Antenna Distribution system with AC power cord, (2) White 25' RG8X BNC cables, (10) 1.5' RG8X BNC cables, (10) 2' RG8X BNC cables, (1) DC-OCTOPUS-CABLE

SKU D-ARCBD9 (1) Black Diversity Architectural Antenna, (1) DISTRO9 HDR Antenna Distribution system with AC power cord, (2) White 25' RG8X BNC cables, (10) 1.5' RG8X BNC cables, (10) 2' RG8X BNC cables, (1) DC-OCTOPUS-CABLE

Wireless mic users in houses of worship, conference rooms, schools, auditoriums, night club, etc.

140°conical pattern with typical range to 200'

Put it at stage wings or front of house (FOH). Point at transmitters (or where the talent is).

Bundled Packs Available:

4 Channel Upgrade Packs:

SKU: D-ARCDISTRO4 - White Diversity Architectural Antenna, DISTRO4 Antenna Distribution system with (10) BNC jumpers, (4) DC jumpers, and (1) AC power cord Two White 25' RG8X BNC cables

SKU: D-ARCBDISTRO4 - Black Diversity Architectural Antenna, DISTRO4 Antenna Distribution system with (10) BNC jumpers, (4) DC jumpers, and (1) AC power cord Two black 25' RG8X BNC cables

5 Channel Upgrade Packs:

SKU: D-ARCD5 (1) DISTRO5 HDR (1) Diversity Architectural Antenna, white (2) 25' RF Venue Low Loss Antenna Cables, white (1) 10 Pack 1.5' RF Venue Low Loss BNC Interconnect Cables, (1)DC-OCTOPUS-CABLE

SKU: D-ARCBD5 (1) DISTRO5 HDR (1) Diversity Architectural Antenna, black (2) 25' RF Venue Low Loss Antenna Cables, black (1) 10 Pack 1.5' RF Venue Low Loss BNC Interconnect Cables, (1) DC-OCTOPUS-CABLE

9 Channel Upgrade Packs:

SKU D-ARCD9 (1) White Diversity Architectural Antenna, (1) DISTRO9 HDR Antenna Distribution system with AC power cord, (2) White 25' RG8X BNC cables, (10) 1.5' RG8X BNC cables, (10) 2' RG8X BNC cables, (1) DC-OCTOPUS-CABLE

SKU D-ARCBD9 (1) Black Diversity Architectural Antenna, (1) DISTRO9 HDR Antenna Distribution system with AC power cord, (2) White 25' RG8X BNC cables, (10) 1.5' RG8X BNC cables, (10) 2' RG8X BNC cables, (1) DC-OCTOPUS-CABLE

What Our Customers Have to Say

"The Diversity Architectural Antenna was such a great addition to our tool belt. It’s paintable, so we can make it fit any color scheme, and its slim design means it can fit anywhere. The Diversity Architectural Antenna delivers on aesthetics while also doing its core job of making sure that this new area of the church never has a wireless dropout.”

Anthony Stowell, Director of Integrations at Clear ProAV

"In the gym with the antennas needing to be located between 10 and 12 feet above the floor and near the basketball hoops, an antenna there will get hit. Using the Diversity Architectural Antenna, we know it’ll survive this environment nicely. They work perfectly anywhere you put them”

Joe Fertitta, CEO/President of CueBlue

“The D-ARC’s 150-degree flood-type pattern gave us the focused coverage we needed to keep all those channels of wireless audio clear. The combination of the D-ARC and the Bandpass Filters means we start every event with a very robust RF infrastructure. We’ve gone from having RF interference issues at 25 percent of our events to none at all this season.”

John Nuzzo, Integrity Sound Solutions’ President

Product Setup

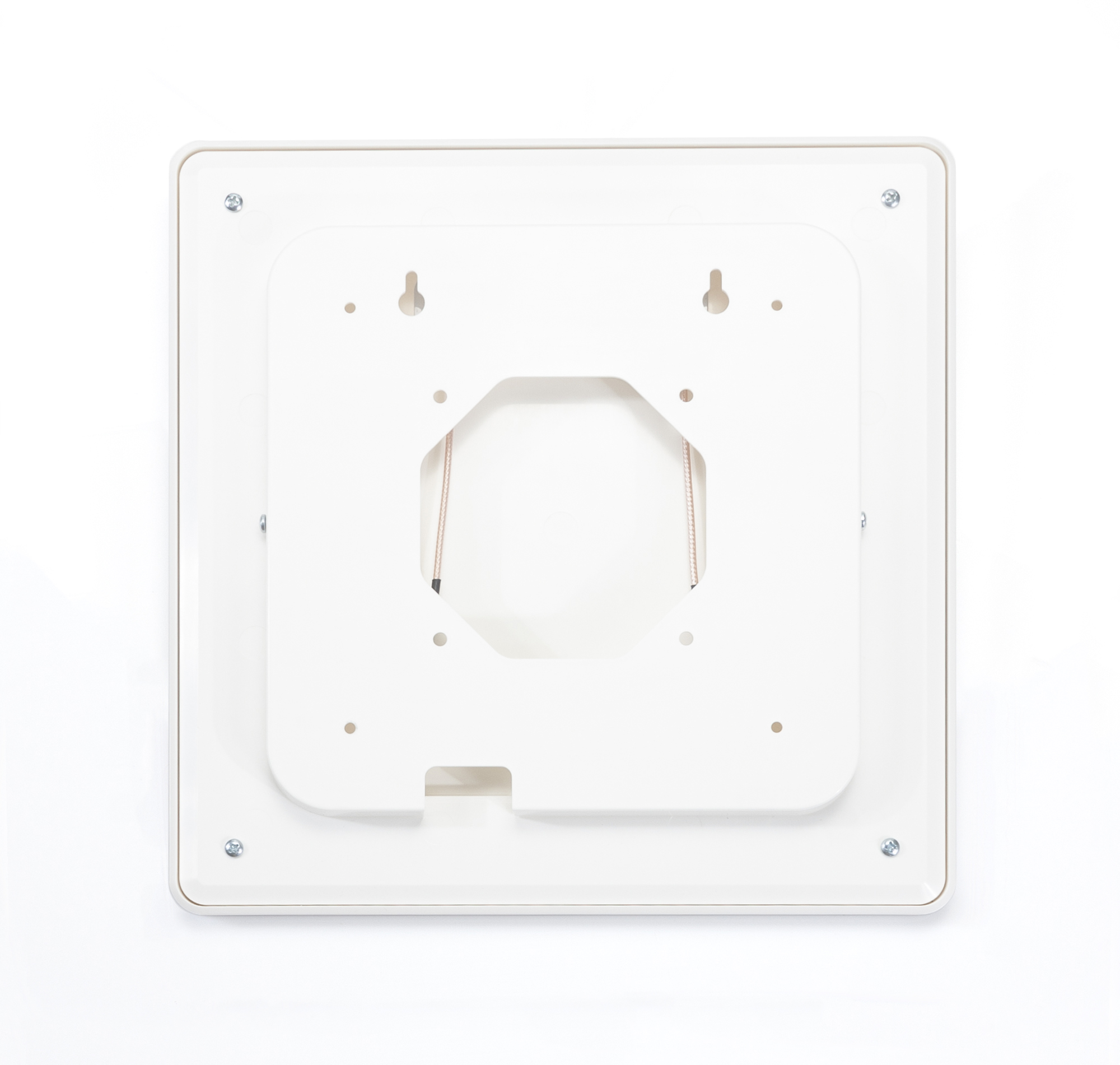

The Diversity Architectural Antenna takes minutes to install, with its rear-mounted plate that comes pre-drilled with multiple options for a mounting hole. The rear plate easily connects to the front plate and is secured with screws. Then, all you need to do to finish installing this antenna system for wireless microphones is connect the two rear-mounted BNC-terminated coaxial cables to your coaxial cable run and the Diversity Architectural Antenna.
