SKU: RF-PA-KIT, RF-PA-8PACK, RF-PA-RX
RF PA Extension Kit
MAP: $1,999 USD for one transmitter, two receivers
$4,999 USD for one transmitter, eight receivers
$549 USD for single add-on receivers
Deliver wireless PA coverage — without dropouts, without wires.
Key Features & Benefits
Slash Setup Time & Costs:
Simple Operation:
Road-Ready Reliability:
About the Product
-
Target Audience and Venues
- Live Event Companies & Mobile DJs
- Multi-Point PA Applications (Conferences, Campuses, Hospitality)
- Municipal & Community Events
-
Bandwidth
470-506 MHz UHF band
-
Perfect For
- Breakout Rooms & Green Rooms
- VIP Lounges & Dressing Rooms
- Walk-In Music & Lobby Coverage
- Satellite Bars & Extended Dance Floors
- Delay Towers & Outdoor Festival Zones
- Anywhere you need PA coverage without the wires!
-
Available Packs & Parts
Available as kits with 2 or 8 receivers. Additional receiver units are also available separately.
- Live Event Companies & Mobile DJs
- Multi-Point PA Applications (Conferences, Campuses, Hospitality)
- Municipal & Community Events
470-506 MHz UHF band
- Breakout Rooms & Green Rooms
- VIP Lounges & Dressing Rooms
- Walk-In Music & Lobby Coverage
- Satellite Bars & Extended Dance Floors
- Delay Towers & Outdoor Festival Zones
- Anywhere you need PA coverage without the wires!
Available as kits with 2 or 8 receivers. Additional receiver units are also available separately.

What Our Customers Have to Say
- “Amazed at its range, stability, and signal quality.”
- “Penetrated through several brick and concrete masonry walls.”
- “Easy to set up. Reliable.”
- “Saved us hours of running cable.”
- “Transmitted from the ballroom FOH out front to the foyer and to another green room speaker backstage. Ran for 5 days with no dropouts.”
Product Setup
Who Needs This & Why It Excels:- For Live Event Companies & Mobile DJs: Problem: Long, messy cable runs are time-consuming, costly, and a trip hazard. Solution: Effortlessly deliver flawless audio to secondary and tertiary spaces (e.g., cocktail hour, remote bars, overflow areas). Focus on your event, not troubleshooting cable jungles.
- For Multi-Point PA Applications (Conferences, Campuses, Hospitality): Problem: Creating distinct audio zones or linking indoor/outdoor sound can be complex and inflexible. Solution: Easily establish independent PA zones. Add unlimited additional receivers to cover every required area, from breakout sessions to patio spillover.
- For Municipal & Community Events: Problem: Covering sprawling outdoor areas (road races, parks, town festivals, fireworks) with wired PA is often impractical. Solution: Reliably distribute clear audio for announcements and music across large public spaces, ensuring everyone stays informed and entertained.

What's Included
RF PA Transmitter
- Dual Channel Rackmount Transmitter
- Two 1/2 Wave UHF Antennas • AC Power Cable
- Two Short BNC Cables
- Two Panel Mount BNC Pass Thru Connectors

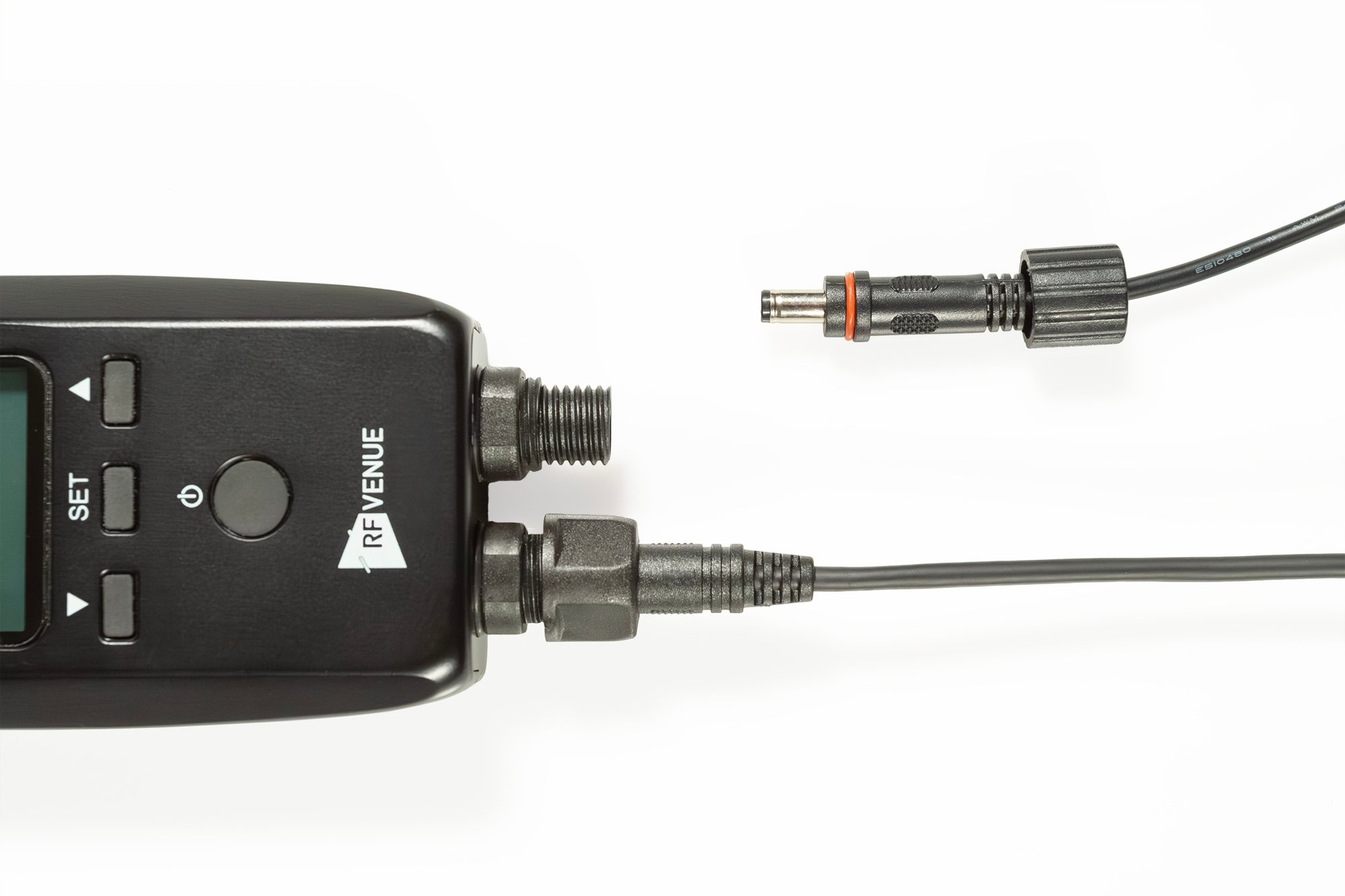

RF PA Receiver
- Single Channel Receiver
- 12 VDC Power Supply
- Mini XLR Female to XLR Male Cable
- Hook and Loop Tape, Mount, Screws

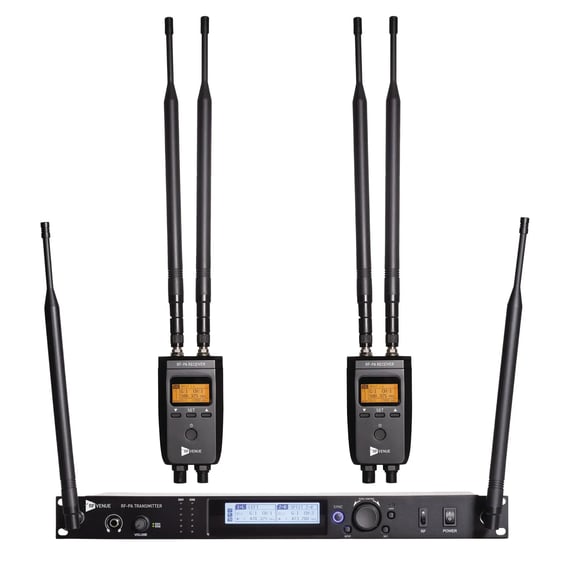

SKU RF-PA-KIT contains 1 transmitter and 2 receivers

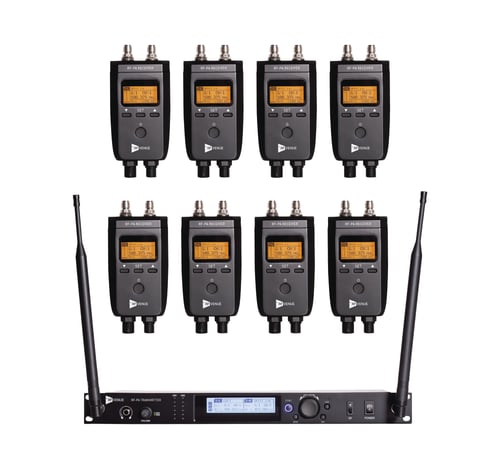

SKU RF-PA-8PACK contains one transmitter and 8 receivers
SKU RF-PA-RX contains 1 add-on receiver
Specifications and Product Resources
View All ResourcesFrequently Asked Questions
Is there any latency with the RF PA Extension Kit?
The RF PA Extension Kit is an Analog FM UHF wireless system, so it has little to no latency, just like a professional IEM wireless system. Analog RF travels at the speed of light. For all practical purposes, latency within analog FM RF equipment is negligible and not noticeable as opposed to performers and listeners who are walking around live PA loudspeakers.
Latency or delay between loudspeakers is noticeable due to how sound travels through the air. The only time where latency is an issue regarding RF equipment is when IEM users are using a ear-bud in their ears. The time delay of the sound arriving to them can become distracting when it mixes together with their own voice
How many receivers can you link to a single transmitter?
Unlimited for wireless audio transmission, a limit of 5 Receivers can be remotely Sync’d to the transmitter using the transmitter Sync function
What’s the range?
Outdoors with line of sight / 150-300FT with Stock antennas (we’ve had customers report some impressive ranges) - 300FT Or more with CP beam
