Passive Splitter/Combiner

Buy Online Dealer Purchase

Use the 2x1Split to make an 8 channel IEM combiner, create a distributed antenna system, or to tap into your spectrum analyzer to get more insight into your setup.

Buy Online Dealer Purchase

Technical Specs

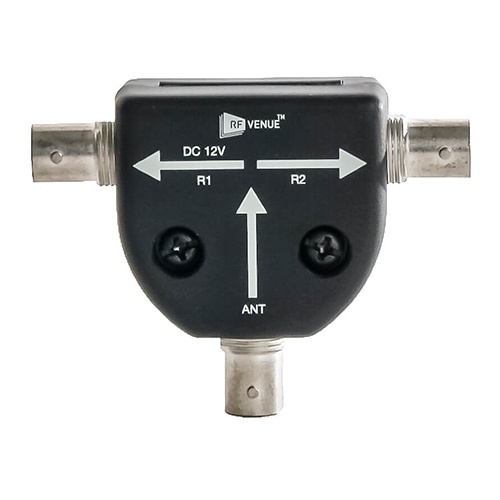

Passive 2X1 RF Signal Splitter / Combiner, BNC female connectors


The 2x1SPLIT is intended for use with wireless audio systems and is compatible with all major brand wireless microphones and in-ear monitors.



One BNC antenna in and two BNC out, or two BNC antennas in and one BNC out. R1 channel passes 12V DC if DC over coax is provided.



RF Carrier Frequency Range: 10-1,000 MHz

VSWR (Voltage Wave Standing Ratio): 1.2

Impedance: 50 Ohm

Isolation: 20dB

Insertion Loss: 2dB

Dimensions: 72.2x54.9x23.6 mm

Weight: 62.6g


Simple, two zone distribution scheme with the Diversity Fin Antenna
