SKU: CP-ARC, CP-ARCB

CP Architectural Antenna™

IN STOCK

MAP: $649 USD

The greatest and easiest improvement you can make to your IEM system is to deploy a CP antenna. The CP Architectural Antenna provides all of the benefits of RF Venue’s antenna in an elegant, almost invisible enclosure. It is a high performance antenna for installed in-ear monitor systems (IEMs). Featuring a slim profile enclosure, the CP Architectural Antenna can be installed on a wall or ceiling and can be painted to match any interior. Unlike LPDA or “paddle” antennas with a fixed polarization, the CP Architectural Antenna uses a unique circularly polarized design to provide excellent transmit signal coverage for IEMs with a highly polished and professional look that room designers and architects appreciate.

Antenna Quick Sheet Where To Buy

Key Features & Benefits

Circularly Polarized for a consistent signal A fluctuating signal leads to noise and dropouts

Slim Profile Blends into any background

High Performance Eliminates the most common interference problems, thus reducing dropouts

About the Product

Target Audience and Venues

Wireless IEM users in houses of worship, conference rooms, schools, auditoriums, etc. Very effective in large multi-zone applications
Pattern and Range

120° conical pattern with typical range to 200'
Placement Example

Install at stage wings or front of house (FOH). Point at receivers (or where the talent is)
Available Packs & Parts

Bundled Packs Available:

4 Channel Upgrade Packs

SKU: COMB4CP-ARC - White CP Architectural Antenna with wall/ceiling mount, COMBINE4 Antenna Combiner with (4) BNC jumpers, (4) DC jumpers, and (1) AC power cable, (1) 25' RG8X BNC cable, white

SKU: COMB4CP-ARCB - Black CP Architectural Antenna with wall/ceiling mount, COMBINE4 Antenna Combiner with (4) BNC jumpers, (4) DC jumpers, and (1) AC power cable, (1) 25' RG8X BNC cable, black

6 Channel Upgrade Packs

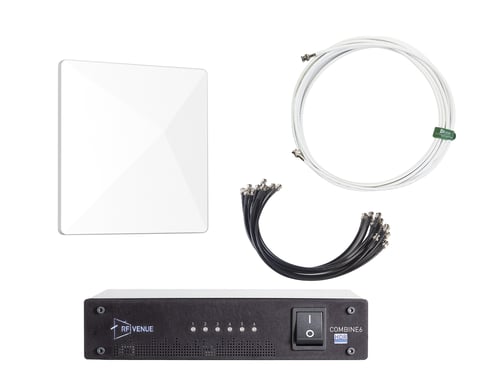

SKU: COMB6CP-ARC - White CP Architectural Antenna, COMBINE6 HDR 12V 40 Watt Power Supply IEC Power Cable Rack Ears (Short and Long) Half Rack Connecting Plate and Mounting Hardware, (1) White 25' RF Venue Low Loss Antenna Cables, (1) 10 Pack 1.5' RF Venue Low Loss BNC Interconnect

Cables

SKU: COMB6CP-ARCB - Black CP Architectural Antenna, COMBINE6 HDR 12V 40 Watt Power Supply IEC Power Cable Rack Ears (Short and Long) Half Rack Connecting Plate and Mounting Hardware, (1) Black 25' RF Venue Low Loss Antenna Cables, (1) 10 Pack 1.5' RF Venue Low Loss BNC Interconnect Cables

8 Channel Upgrade Packs

SKU COMB8CP-ARC - White CP Architectural Antenna with wall/ceiling mount, (1) COMBINE8 Antenna Combiner, (1) RG8X25 Coaxial Cable, white, (8) BNC jumpers, (1) DC Octopus 8-Connector Power Distribution Cable, (1) AC power cable

SKU COMB8CP-ARCB -Black CP Architectural Antenna with wall/ceiling mount, (1) COMBINE8 Antenna Combiner, (1) RG8X25 Coaxial Cable, black, (8) BNC jumpers, (1) DC Octopus 8-Connector Power Distribution Cable, (1) AC power cable

Wireless IEM users in houses of worship, conference rooms, schools, auditoriums, etc. Very effective in large multi-zone applications

120° conical pattern with typical range to 200'

Install at stage wings or front of house (FOH). Point at receivers (or where the talent is)

Bundled Packs Available:

4 Channel Upgrade Packs

SKU: COMB4CP-ARC - White CP Architectural Antenna with wall/ceiling mount, COMBINE4 Antenna Combiner with (4) BNC jumpers, (4) DC jumpers, and (1) AC power cable, (1) 25' RG8X BNC cable, white

SKU: COMB4CP-ARCB - Black CP Architectural Antenna with wall/ceiling mount, COMBINE4 Antenna Combiner with (4) BNC jumpers, (4) DC jumpers, and (1) AC power cable, (1) 25' RG8X BNC cable, black

6 Channel Upgrade Packs

SKU: COMB6CP-ARC - White CP Architectural Antenna, COMBINE6 HDR 12V 40 Watt Power Supply IEC Power Cable Rack Ears (Short and Long) Half Rack Connecting Plate and Mounting Hardware, (1) White 25' RF Venue Low Loss Antenna Cables, (1) 10 Pack 1.5' RF Venue Low Loss BNC Interconnect

Cables

SKU: COMB6CP-ARCB - Black CP Architectural Antenna, COMBINE6 HDR 12V 40 Watt Power Supply IEC Power Cable Rack Ears (Short and Long) Half Rack Connecting Plate and Mounting Hardware, (1) Black 25' RF Venue Low Loss Antenna Cables, (1) 10 Pack 1.5' RF Venue Low Loss BNC Interconnect Cables

8 Channel Upgrade Packs

SKU COMB8CP-ARC - White CP Architectural Antenna with wall/ceiling mount, (1) COMBINE8 Antenna Combiner, (1) RG8X25 Coaxial Cable, white, (8) BNC jumpers, (1) DC Octopus 8-Connector Power Distribution Cable, (1) AC power cable

SKU COMB8CP-ARCB -Black CP Architectural Antenna with wall/ceiling mount, (1) COMBINE8 Antenna Combiner, (1) RG8X25 Coaxial Cable, black, (8) BNC jumpers, (1) DC Octopus 8-Connector Power Distribution Cable, (1) AC power cable

RFVenue_ArcAntennaOnGrayWall_AustinStone

What Our Customers Have to Say

“We recommend and design systems using RF Venue products because they bring the perfect formula of performance and cost. Their products make our designs and installations easy to deploy and perform spectacularly. Customers are always happy with our RF Venue solutions, whether it is a specialized antenna solution or simply a basic antenna distribution. Great company to partner with."

AVnew, LLC.

Product Setup

The CP Architectural antenna installs in minutes, with a wall or ceiling-mounted rear plate that is pre-drilled with multiple mounting hole options. The rear plate then simply connects to the front plate, secured with the included mounting screws. Simply connect the rear-mounted BNC terminated coaxial cable to your in-wall or in-ceiling coaxial cable run and the CP Architectural is ready for use.
