Diversity Fin® IPX Antenna

The Industry Standard. Now Built for the Elements.

Rugged. Weather-Resistant. Reliable Wireless.

The legendary Diversity Fin performance—now engineered for touring, festivals, stadiums, and permanent outdoor installations. Rated IP44 and built to survive rain, wind, and impact, Diversity Fin IPX eliminates dropouts in the harshest RF environments.

IDEAL APPLICATIONS

Touring & Rental
Outdoor Festivals
Sports Facilities
Stadium Press Boxes
Permanent Outdoor Worship Spaces
Theaters & Performing Arts Centers

Have a Question? Talk to our Experts

IPXBW

THE PROBLEM

Wireless antennas may experience physical damage before any loss of functionality is noticeable.

It fails in the rain
On the truck
During load-in
Under stage heat
Or when something unexpected hits it

The Diversity Fin® IPX was engineered specifically for those moments.

THE SOLUTION

The Diversity Fin IPX Antenna combines a log-periodic dipole array (LPDA) and a dipole antenna inside a single ruggedized, IP44-rated enclosure.

That means:

Both vertical and horizontal RF energy are captured
Eliminate signal dropouts and greatly reduces multi-path interference
Built for permanent outdoor installations

Bring greater confidence to all outdoor wireless mic installations.

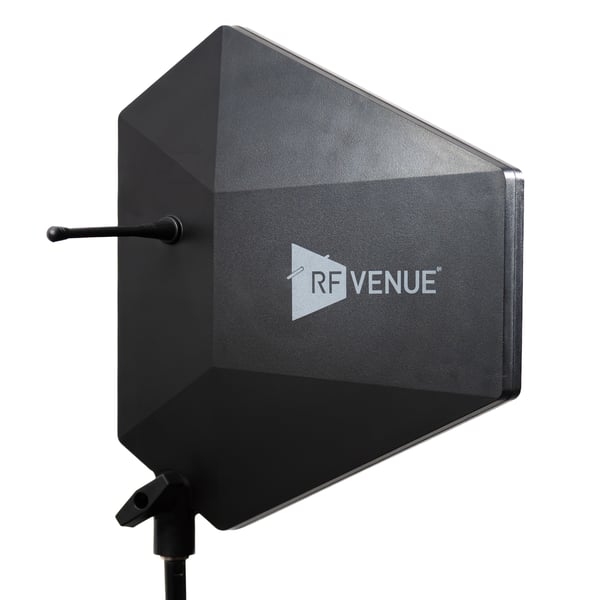

DFIN-IPX Black 1

MAP $799

Key Features

IP44 Rated

Weather-resistant enclosure and downward-facing BNC connectors protect against rain and dust ingress.

Patented Cross-Polarized Design

Replaces two traditional paddle antennas with one high-performance unit—reducing cost, setup time, and user error.

Superior Signal Integrity

Designed specifically to combat the most common signal fade issues vastly reducing dropouts.

Built for the Road

Ruggedized enclosure with newly designed watertight threaded dipole antennas that can withstand impact. Designed to survive touring, festivals, and permanent outdoor installs.

Versatile Mounting

Durable Twist Lock 5/8”-27 threaded microphone stand mount (EU adapter included). Need to wall-mount? We've designed a new universal wall-mount bracket system that can be purchased separately.

High Compatibility

Operates across 470–928 MHz—compatible with nearly all modern wireless microphone systems.

Available to order in Black or White

What's in the box

(1) Diversity Fin IPX Antenna
(2) Dipole Antennas
(2) Spare Dipole Antennas
(1) Dipole Storage Pouch
(1) Threaded EU Microphone Stand Adapter

ORDER NOW

Features

Operating Frequency

470–928 MHz

Weather Rating

IP44 (Weather-resistant)

Connector Type

Downward-facing BNC-F (50 ohm)

Polarization

Cross-Linear (Vertical & Horizontal)

Impedance

50 ohm

Type

Passive (No active electronics)

Mounting

5/8”-27 threaded mount (EU adapter included)

Available Finishes

Matte Black or Matte White

Feature

Durability

Lightweight

Ruggedized sealed, impact & weather resistant

Weather Rating

Not IP Rated

IP44 Rated and Permanent Outdoor Approved

Mounting

1/4-20, 3/8-16, 5/8 multi thread mounting block

Twist Lock 5/8”-27 threaded mount (EU adapter included)

Dipole Antennas

BNC removable

Watertight Threaded Removable (2 spare whips included)

Frequency Range

470–698 MHz

470–928 MHz

What Audio Professionals Are Saying

“We recently replaced the two LPDA paddles we normally deploy with our Shure system and integrated the DFIN-IPX into our workflow at Levi’s Stadium. The transition was seamless for our tech team, and the setup felt immediately familiar and intuitive.”

Alan Chang, Coral Canopy

“We used the antenna for wireless mics during a church service ‘in the round’ for 5,000 people at SNHU Arena in Manchester. Signal strength and response were excellent in every configuration. I was especially impressed with the reception both in front of and behind the fin. It’s a great unit that performs well both passively and powered. Overall, very impressive performance.”

Adam Godbout, MFI Pro

Built to Take the Hit. Engineered to Keep the Signal.

The Diversity Fin® IPX was engineered specifically for those moments. Check out the below video where we put the IPX to the ultimate test.

Reliable Wireless, Solved in One Bundle.

WHY CHOOSE A BUNDLE?

Struggling with dropouts is frustrating. RF Venue bundles ensure you're using the right antenna and right accessories. And there's no need to guess if you have everything you need. No backtracking, no “forgot to order cables,” and no last-minute compatibility surprises.

We provide plug and play products that give integrators and their customers confidence that their wireless systems will work every time - with no wireless expertise needed.

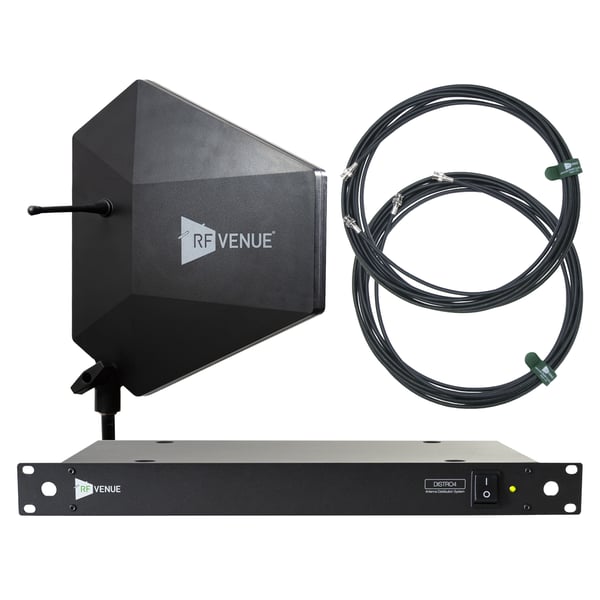

DFIN-IPXDISTRO4

MAP $1619

4 Channel Upgrade Pack (DFIN-IPXDISTRO4)

This turnkey bundle includes everything needed to configure up to 5 channels of wireless microphones

Includes:

Diversity Fin IPX Antenna
DISTRO4 Antenna Distribution System
(2) 25' RG8X Low-Loss Coax Cables
(10) BNC Jumpers
(4) DC Jumpers

Benefits:

Eliminates multiple factory antennas using a single remote antenna
Provides 12V DC power for up to 4 receivers
Features BNC outputs for 4 receivers, plus cascade BNC for 5th receiver or to connect to another unit

Ideal for touring rigs and small-to-mid installations.

Also available with a white IPX Antenna

ORDER NOW

DFIN-IPXD5

MAP $1799

5 Channel Upgrade Pack (DFIN-IPXD5)

This turnkey bundle includes everything needed to configure up to 5 channels of wireless microphones with high performance

Includes:

Diversity Fin IPX Antenna
DISTRO5 HDR Antenna Distribution system
(2) 25' RG8X Coax Cables
(1) DC-OCTOPUS Power accessory cable
(1) 10 Pack 1.5' Low Loss BNC Interconnect Cables

Benefits:

Eliminates multiple factory antennas using a single remote antenna
High Performance with 5 channels in 1/2 rack space
Highly expandable, up to 25 channels - cascade from any output
Power up to 8 receivers with DC-OCTOPUS

Perfect for houses of worship, theaters, and rental fleets.

Also available with a white IPX Antenna

ORDER NOW

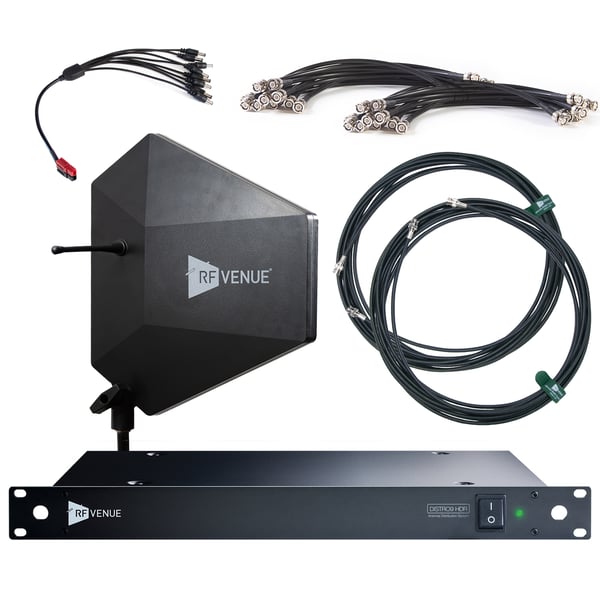

DFIN-IPXD9

MAP $3189

9 Channel Upgrade Pack (DFIN-IPXD9)

This turnkey bundle includes everything needed to configure up to 9 channels of wireless microphones with high performance

Includes:

Diversity Fin IPX Antenna
DISTRO9 HDR Antenna Distribution system
(2) 25' RG8X Low-Loss Coax Cables
(10) 1.5' RG8X Low-Loss BNC cables
(10) 2' RG8X Low-Loss BNC cables
(1) DC-OCTOPUS Power accessory cable

Benefits:

Eliminates multiple factory antennas using a single remote antenna
High Performance with 9 channels in 1RU rack space
Highly expandable, up to 81 channels - cascade from any output
Power up to 8 receivers with DC-OCTOPUS

Designed for larger systems that need greater scalability.

Also available with a white IPX Antenna

ORDER NOW
